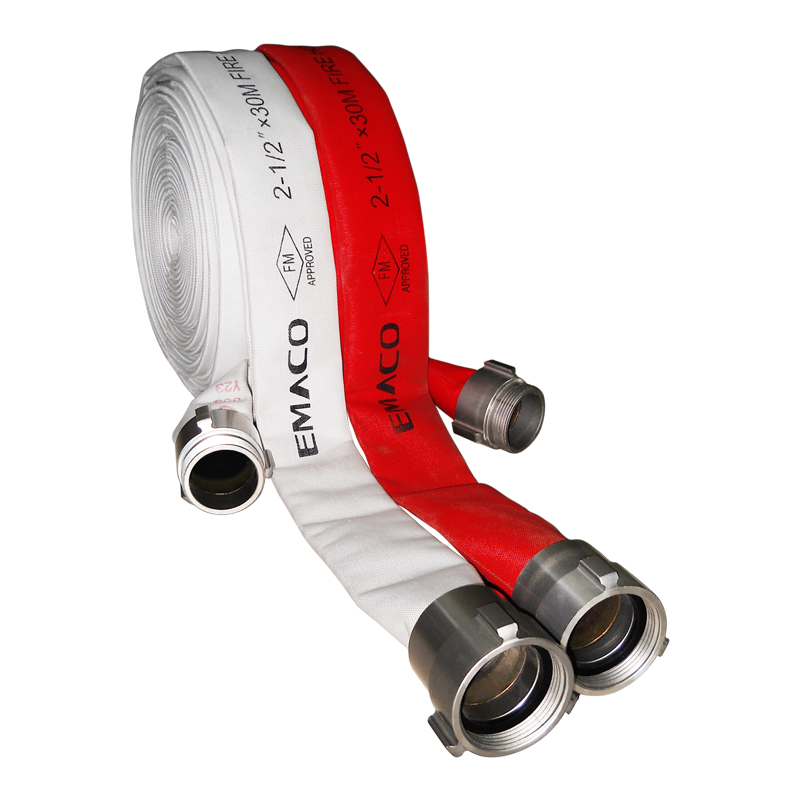

At EMACO GLOBAL, we engineer fire safety solutions that meet the most demanding challenges. The Lay-flat Fire Hose: Double Jacket is built to deliver superior strength, durability, and reliability under extreme firefighting conditions. Unlike the single jacket design, the double jacket hose includes two protective woven polyester covers, offering extra resistance against abrasion, puncture, and wear, making it the preferred choice for industrial, municipal, military, and high-hazard applications.

Manufactured in accordance with UL 19 and NFPA 1961 standards, this hose combines toughness with flexibility. It is lined with high-performance EPDM or Polyurethane tubes, ensuring excellent water flow, resistance to chemicals, and extended service life. Whether used in fire hydrant systems, industrial firefighting, or demanding municipal services, the Lay-flat Fire Hose: Double Jacket guarantees consistent and reliable fire suppression capabilities.



Features of Lay-flat Fire Hose: Double Jacket



• Dual Polyester Jacket – Double-layered woven polyester provides maximum protection and resilience, extending service life in harsh conditions.
• High Lining Strength – Lined with either EPDM or Polyurethane (PU) for enhanced chemical and abrasion resistance.
• Service & Burst Pressure – Handles 400 psi (28 bar) service pressure and up to 1200 psi (83 bar) burst pressure, delivering unmatched safety under high-stress firefighting operations.
• Coupling Options – Compatible with BS, NST, or Ghost couplings, with brass or aluminum options available to meet different system requirements.
• Flexible Lengths – Available in 15 m (50 ft), 30 m (100 ft), and 45 m (148 ft), with customized lengths on demand.
• UL & FM Approved – Certified to meet international firefighting safety and reliability standards.



Technical Specifications (Lay-flat Fire Hose: Double Jacket)



The EMACO GLOBAL Lay-flat Fire Hose: Double Jacket is available in diameters of 1.5-inch (38 mm), 2.0-inch (51 mm), and 2.5-inch (64 mm), allowing users to match the hose to different flow requirements. Its service pressure is rated at 400 psi (28 bar), while the burst pressure can reach up to 1200 psi (83 bar), offering maximum safety margins during operations.

To support diverse needs, the hose is produced in standard lengths of 15 m, 30 m, and 45 m, though customized lengths are also available. With UL Listed and FM Approved models, the hose has global recognition for quality and safety, ensuring it can be confidently deployed in critical firefighting applications worldwide.



Applications of Lay-flat Fire Hose: Double Jacket



The Lay-flat Fire Hose: Double Jacket is particularly suited to environments where high durability and reliability are essential:

• Industrial & Municipal Firefighting – For power plants, refineries, chemical facilities, and city fire departments.
• Military & Defense Installations – For high-demand, rugged field operations requiring enhanced hose strength.
• Civil Engineering & Construction – To ensure water supply and fire safety during large-scale infrastructure projects.
• Agricultural & Fluid Transfer Use—Reliable for irrigation and water movement in challenging terrains.
• Marine & Offshore Applications – Ideal for shipboard, harbor, and offshore firefighting, resisting saltwater and rough handling.



Advantages of Using EMACO GLOBAL Lay-flat Fire Hose: Double Jacket



The double jacket design provides added toughness and longevity, making this hose ideal for demanding firefighting environments where hoses are subject to constant dragging, abrasion, and rough terrain. The high burst strength of up to 1200 psi ensures exceptional safety, even under sudden surges in water pressure.

Unlike lighter hoses, the Lay-flat Fire Hose: Double Jacket is built for heavy-duty performance, offering superior abrasion resistance, enhanced reliability, and longer operational life. This makes it the preferred option for industrial and municipal fire brigades that require consistent performance under extreme conditions. With compatibility across multiple coupling types and certifications from UL and FM, it combines versatility with proven reliability.





Maintenance & Care Guidelines



To ensure durability and readiness, EMACO GLOBAL recommends:

• Inspecting hoses for abrasion, cuts, or leaks before and after use.
• Thoroughly drying before storage to prevent mildew and jacket deterioration.
• Store in a cool, dry location away from chemicals or direct sunlight.
• Conducting annual hydrostatic testing to verify integrity under rated pressures.
• Keep couplings clean, lubricated, and free from debris to ensure a secure fit.



Environmental & Safety Benefits



The Lay-flat Fire Hose: Double Jacket is designed with non-toxic EPDM/PU linings and eco-friendly polyester jackets, ensuring durability without compromising environmental safety. The enhanced double jacket extends service life, reducing replacement frequency and minimizing environmental waste.

Its superior strength and high flow capacity enable faster firefighting responses, helping minimize fire damage and conserve water. The hose is also designed to reduce user fatigue, providing reliable handling despite its heavy-duty construction.



Why Choose EMACO GLOBAL Lay-flat Fire Hose: Double Jacket?



EMACO GLOBAL has established itself as a trusted leader in firefighting technology, and the Lay-flat Fire Hose: Double Jacket reflects our commitment to safety, reliability, and innovation. Unlike standard hoses, this product is engineered for the toughest conditions, providing double the protection, double the durability, and maximum confidence.

With UL and FM certifications, global distribution, and strong after-sales support, EMACO GLOBAL is more than a supplier—we are a partner in fire protection. Choosing our Lay-flat Fire Hose: Double Jacket means investing in equipment that prioritizes lives, assets, and operational continuity.





Frequently Asked Questions (FAQs) – Lay-flat Fire Hose: Double Jacket



1. What is a Lay-flat Fire Hose: Double Jacket?
   It is a firefighting hose with two woven polyester jackets for extra strength, abrasion resistance, and durability, lined with EPDM or PU.
2. How is it different from a single-jacket hose?
   The double jacket design adds an extra protective layer, making it more durable and suitable for industrial and high-demand firefighting.
3. What certifications does it carry?
   Our hoses are available in UL Listed and FM Approved versions, meeting international fire safety standards.
4. What are the available diameters?
   The hoses are manufactured in 1.5-inch, 2-inch, and 2.5-inch diameters.
5. What is the burst pressure rating?
   They can withstand up to 1200 psi (83 bar), offering greater safety compared to single jacket hoses.
6. Can the lengths be customized?
   Yes, standard lengths are 15m, 30m, and 45m, but custom lengths are available upon request.
7. What coupling options are offered?
   We provide BS, NST, and Ghost-type couplings, available in brass or aluminum.
8. Where is the Double Jacket Hose most commonly used?
   In industrial plants, municipal fire brigades, military operations, civil engineering, agriculture, and marine environments.
9. How should the hose be maintained?
   Perform regular inspections, dry completely after use, store properly, and conduct annual hydrostatic pressure testing.
10. Why should I choose EMACO GLOBAL’s Lay-flat Fire Hose: Double Jacket over others?
    Because it offers double-layer protection, superior burst strength, and global certifications, ensuring unmatched reliability. Backed by EMACO GLOBAL’s technical support and worldwide distribution, it provides more than just firefighting equipment — it delivers a complete, dependable fire safety solution.
