HFC-227ea Clean Agent Suppression System

At EMACO Global, we design innovative fire protection systems that provide reliable suppression while minimizing collateral damage. The HFC-227ea Clean Agent Suppression System offers quick-acting, residue-free extinguishing for areas where water or foam would cause irreparable harm to electronics, documentation, or valuable assets.

Using Heptafluoropropane (HFC-227ea) as the extinguishing agent, the system discharges within seconds to interrupt combustion at the molecular level—suppressing fire without leaving moisture, residue, or conductive materials. Its gas-based design makes it safe for occupied areas and compatible with sensitive equipment.

Fully compliant with NFPA 2001 and UL Listed, the EMACO HFC-227ea system provides a dependable, scalable solution for total-flooding fire protection in diverse environments.

Best Features

UL Listed and NFPA 2001 compliant for international safety and reliability
Fast suppression performance, extinguishing fire within 10 seconds
Residue-free, non-conductive agent safe for sensitive and occupied spaces
Customizable 25-bar and 42-bar configurations for various room sizes and hazards
Environmentally safe with zero ozone depletion potential

The HFC-227ea Clean Agent Suppression System is specifically engineered to protect critical assets where traditional water-based systems are unsuitable. This system uses a gaseous fire suppressant—HFC-227ea (Heptafluoropropane)—which rapidly absorbs heat and disrupts the chemical combustion process, extinguishing fire within seconds.

The clean agent is stored as a liquefied compressed gas in steel cylinders and discharged through a network of pipes and nozzles designed for total room coverage. Upon detection of fire by smoke or heat sensors, the system automatically releases the agent, ensuring full-flooding concentration in under 10 seconds.

Unlike conventional systems, the EMACO HFC-227ea leaves no residue, requires no post-discharge cleanup, and does not harm sensitive electronics, documents, or artworks. It provides seamless protection in facilities such as data centers, control rooms, hospitals, archives, museums, and laboratories.

How the EMACO HFC-227ea Clean Agent Suppression System Works

Detection & Activation
The system connects to a detection network (smoke or heat sensors) linked to a control panel. When a fire is detected, the panel triggers the cylinder release mechanism automatically or manually.
Agent Discharge
Pressurized HFC-227ea is released from the cylinders through discharge valves and directed into the piping network. The gas disperses rapidly through precision nozzles to flood the protected area.
Heat Absorption & Chemical Suppression
The agent absorbs heat energy and interrupts the chain reaction of combustion at the molecular level. This stops the fire without reducing oxygen to unsafe levels for occupants.
Residue-Free Extinguishing
The agent leaves no residue, moisture, or particulate matter—eliminating post-fire cleanup and preventing secondary damage to electronics or documents.
Ventilation & System Reset
After discharge, ventilation systems purge the area to restore breathable air. Cylinders are recharged, and system pressure, detection, and alarms are reset for the next cycle.

Technical Specifications and Components

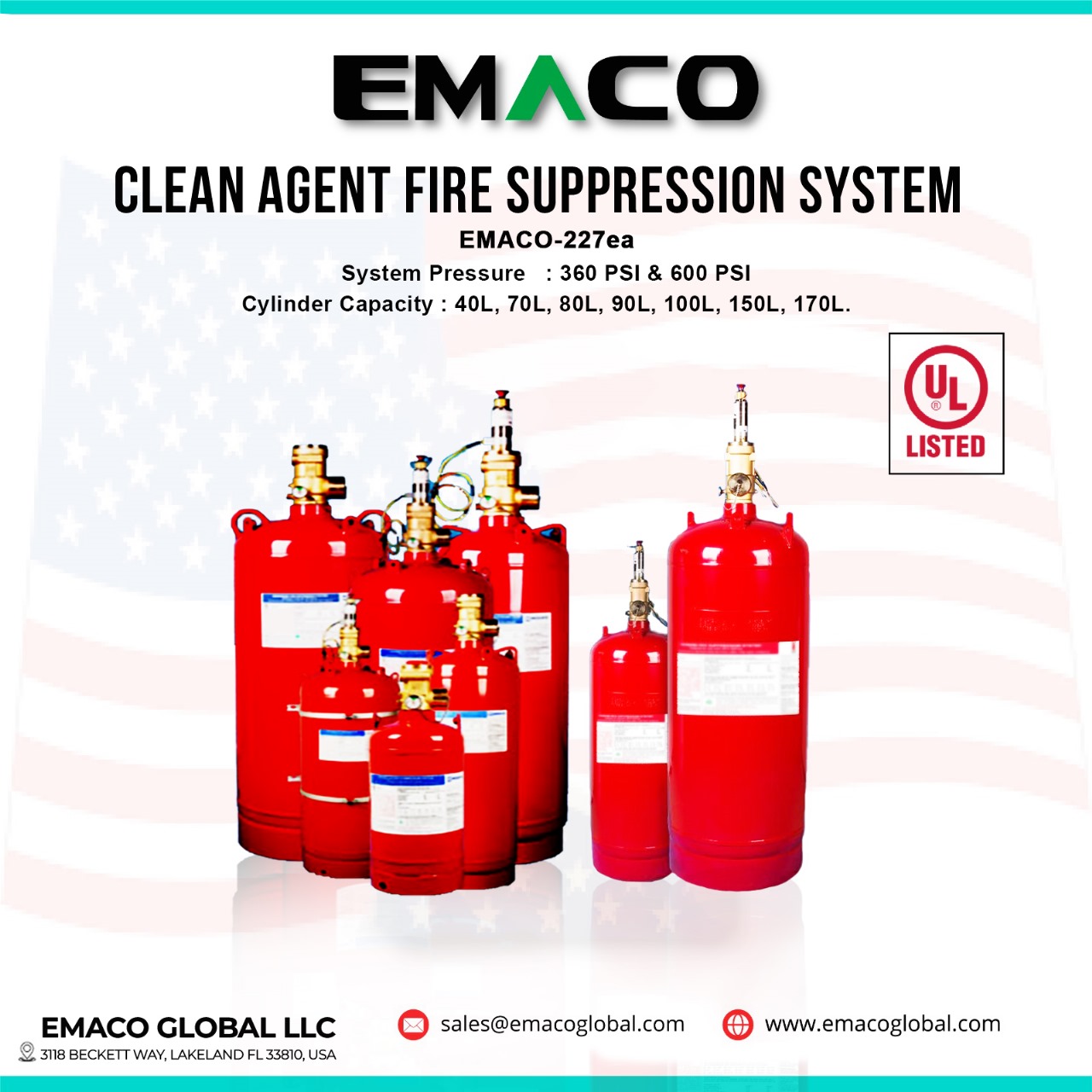

HFC-227ea Storage Components:

Storage components consist of the cylinder assembly (s), which contains the HFC-227ea chemical agent, and the cylinder bracket(s), which holds the cylinder assembly securely in place.

HFC-227ea Distribution Components:

Distribution components consist of the discharge nozzles used to introduce the HFC227ea agent into a protected hazard, along with the associated piping system used to connect the nozzles to the cylinder assembly.

Trim Components:

Trim components complete the installation of the HFC-227ea system and consist of connection fittings, pressure gauges, low-pressure supervisory switches, an electric valve actuator, and a manual valve actuator.

Slave Arrangement Components:

Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve, bleed valve, pilot hose, and fittings required for a multiple-cylinder (slave) arrangement.

Supplemental Components:

Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration.

Control Panel:

This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must be connected to the control panel in order to function.

Specifications

Cylinder Capacity: 40 Litter to 180 Litter
System Pressure: 360 Psi (25 Bar) & 600 Psi (42 Bar)

Applications & Use Cases for HFC-227ea System

Data Centers & Server Rooms

Instant protection against electrical and cable fires without equipment damage or downtime.

Telecommunication Facilities

Safeguards routers, switches, and control panels from heat and flame with non-conductive suppression.

Archives, Museums & Libraries

Protects priceless documents, artworks, and collections without moisture, residue, or chemical harm.

Medical & Healthcare Facilities

Prevents fire spread in MRI rooms, laboratories, and clean environments without endangering personnel.

Power Control & Industrial Rooms

Protects PLC panels, substations, and turbine controls where water systems are impractical.

Maintenance and Care

Scheduled Inspection

Monthly visual inspections ensure all cylinders maintain rated pressure and nozzles remain unobstructed.

System Integrity Testing

Annual room integrity tests confirm that protected areas can hold agent concentration long enough for fire suppression.

Cylinder Testing & Recharging

Cylinders must be hydrostatically tested and weighed regularly to confirm proper fill levels and structural integrity.

Alarm & Control Panel Testing

Periodic testing verifies signal transmission, manual release stations, and interface logic between detectors and actuators.

Post-Discharge Maintenance

After activation, inspect the piping, replace discharged cylinders, and recalibrate detection devices before rearming the system.

Why Choose EMACO HFC-227ea Clean Agent Suppression System

UL-Listed Reliability

Each system component—cylinders, valves, discharge nozzles, and actuators—is UL listed and tested for performance consistency and durability under varying conditions.

Fast and Efficient Suppression

Achieves total flood discharge and extinguishment within 10 seconds, minimizing damage and downtime in high-value environments.

Environmentally Responsible

Zero ozone depletion potential (ODP = 0) and compliant with international environmental protocols for clean-agent systems.

Safe for Occupied Spaces

Non-toxic at design concentrations and non-conductive, making it ideal for personnel-occupied and equipment-intensive areas.

Custom Design Flexibility

Available in 25-bar and 42-bar configurations to match room volume, hazard type, and local compliance codes. Modular scalability supports both small and multi-zone facilities.

Durability & Lifespan

The EMACO HFC-227ea Clean Agent System offers a long operational lifespan when maintained under standard inspection intervals. Cylinders and valves, when stored in controlled environments, can remain serviceable for over 10–15 years with proper recharging and hydrostatic testing. All components are manufactured with corrosion-resistant coatings and robust sealing materials, ensuring consistent discharge performance even after extended standby periods.

1. What makes the EMACO HFC-227ea System ideal for critical facilities?

The EMACO HFC-227ea system provides rapid, residue-free fire suppression, preventing collateral damage to sensitive electronic, archival, or industrial assets. Its clean agent ensures operational continuity with minimal downtime and full compliance with NFPA 2001 and UL standards.

2. Is HFC-227ea safe for human occupancy?

Yes. HFC-227ea is non-toxic and non-conductive at approved design concentrations. It extinguishes fires without significantly reducing oxygen levels, making it safe for occupied spaces. After discharge, standard ventilation protocols restore normal air conditions.

3. How long does it take for the system to discharge and extinguish fire?

The EMACO HFC-227ea system typically achieves total flooding within 10 seconds of activation, ensuring the fire is suppressed before it spreads or causes damage.

4. Can it be integrated with existing fire detection systems?

Absolutely. The system seamlessly integrates with standard fire alarm control panels, smoke and heat detectors, and manual release stations. It can also be networked across multiple rooms for zoned suppression.

5. How is maintenance performed on the HFC-227ea system?

Maintenance includes regular pressure checks, alarm panel testing, and integrity verification. Cylinders are hydrostatically tested every five years and recharged if necessary. Periodic inspection ensures valves, hoses, and nozzles remain clean and ready for immediate operation.
