Rim Seal Foam Pourer

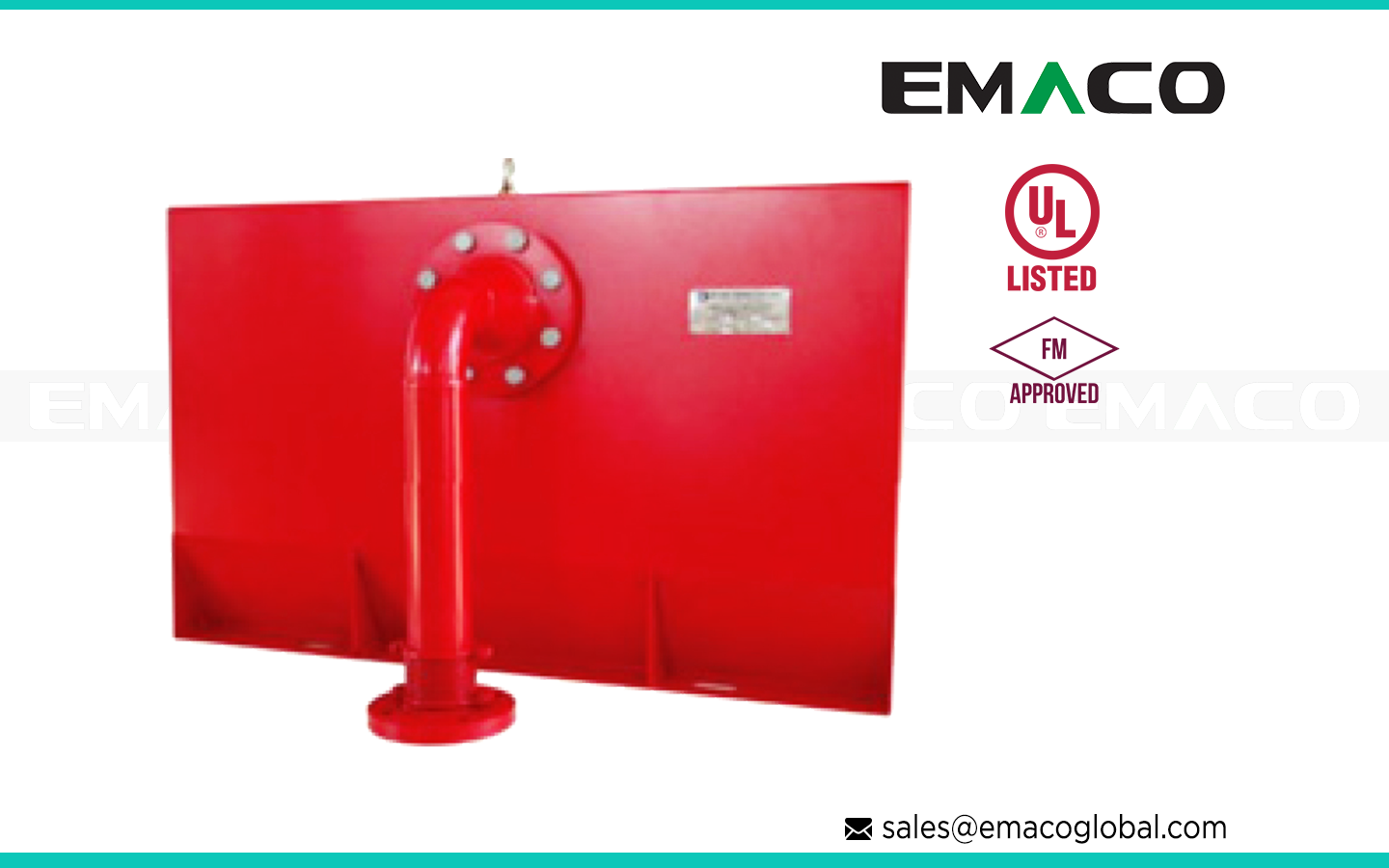

The Rim Seal Foam Pourer is a fixed foam discharge assembly engineered specifically for safeguarding the rim seal region of open‑top floating roof storage tanks. Its primary purpose is to deliver fully aspirated, expanded foam directly into the annular seal area, where vapor accumulation and ignition risk are highest. The unit comprises a foam maker, a windshield, and an integral deflector—an efficient combination that supports rapid, non‑agitative foam application.

Certified under industry‑recognized safety standards, select models carry UL Listing and FM Approval, giving operators confidence in performance and compliance for high‑risk installations. Typical material options include corrosion‑resistant carbon steel or stainless steel, finished with protective coatings to withstand harsh industrial environments.

Key Features

Rim-Seal Protection: For external floating roof tanks.
Built-In Foam Maker: Produces stable expanded foam.
Uniform Coverage: Deflector ensures even discharge.
Certified Options: UL/FM-approved models available.
Heavy-Duty Build: Ideal for refineries and storage terminals.

Floating roof tanks are widely used to store flammable liquids such as crude oil, gasoline, jet fuel, and solvents. The rim seal—the gap where the floating roof meets the tank shell—is critically vulnerable to fire from vapour build‑up, lightning strikes, or mechanical friction. When a fire begins here, rapid foam application is essential to smother vapors, cool heated surfaces, and prevent catastrophic escalation.

The Rim Seal Foam Pourer is designed to act immediately and precisely in this zone. By channeling expanded foam directly into the rim seal trough, it forms a protective blanket that suppresses vapors without stirring or agitating the burning liquid. This helps avert re‑ignition and spreads protection evenly around the tank circumference.

EMACO’s design emphasizes both performance and durability. The configuration of foam maker, windshield, and deflector minimizes turbulence and allows operators to depend on consistent foam output even under challenging site conditions.

How the Rim Seal Foam Pourer works

1) Foam solution supply

Foam solution from a proportioning network is routed into the foam maker connected to the pourer assembly. Operational pressure and foam concentration are set per system design and hazard type.

2) Foam expansion

The foam maker introduces air into the foam solution through a venturi or similar aeration mechanism, producing fully aspirated foam with a stable bubble structure. This expanded foam is essential for effective vapor suppression and heat absorption at the rim seal.

3) Controlled discharge into the rim seal area

The foam flows through the pourer housing to the integral deflector and windshield. It is directed downward into the rim seal trough with low velocity, preventing agitation of the flammable liquid or vapors. This controlled application is vital for safe, effective Class B fire protection.

4) Uniform spread and coverage

The deflector and housing geometry ensure that foam is distributed evenly along the rim circumference. Even coverage quickly creates a continuous foam blanket, sealing the vapor path and cooling surfaces to reduce fire intensity.

5) Continued suppression and protection

As long as a foam solution is supplied, the system maintains a protective layer at the rim seal, allowing operators to manage the incident with reduced risk of flare‑ups or escalation.

Technical Specifications

Model	APPROVAL	Material	SIZE	WORKING PRESSURE	FLOW
E0303-P65	UL/FM	Carbon Steel	2.5’’ (65mm)	AFFF 3% [UL listed] – 2.74 to 2.64 bar, AFFF 3% [FM Approved] – 4.8 to 6.86 bar,	50 to 550lpm
E0303-PS65	UL/FM	Stainless Steel	2.5’’ (65mm)		50 to 550lpm

Applications & use cases

Floating roof storage tanks

Primary use for rim seal fire protection in tanks containing gasoline, crude oil, jet fuel, naphtha, and other flammable liquids. Critical in terminal and refinery settings.

Refineries and petrochemical industries

Protects high‑risk storage areas where vapor ignition and lightning‑induced fires are possible. Works within larger foam systems managing multiple tanks and hazards.

Fuel storage terminals

Supports rapid, reliable foam application around the tank perimeter, aiding fire brigades or automated suppression systems.

Port, marine, and offshore storage

Can be installed in dockside tank facilities or marine terminals exposed to corrosive and harsh environmental conditions, with suitable material and coating selection.

Chemical plants and processing sites

Useful wherever rim seal or similar zones require fast foam application to prevent vapor escape and control fire spread.

Maintenance and care

Routine inspection

Check pourer housing, foam maker, deflector, and windshield for corrosion, mechanical damage, or blockage. Inspect fittings and welds for integrity, especially after harsh weather or seismic events.

Foam maker cleaning

Ensure aeration inlets and internal passages are free of debris or residue. Cleaning maintains foam expansion quality and prevents uneven discharge.

Deflector and discharge chute

Confirm the deflector is clean, properly aligned, and free from deformation. Even a slight distortion can lead to uneven foam spread or localized gaps in coverage.

Protective coating upkeep

In marine or chemical atmospheres, reapply coatings as necessary to guard against corrosion. Stainless steel options may reduce maintenance frequency in highly corrosive environments.

Operational testing

Perform periodic foam discharge tests under controlled conditions to verify uniform foam output, coverage, and system responsiveness. Tests also help identify any pressure or flow anomalies early.

Proper maintenance ensures the Pourer remains reliable for many years, reducing downtime and ensuring readiness when incidents occur.

Why choose EMACO Rim Seal Foam Pourer

Certified performance

Select variants carry UL Listing and FM Approval, confirming that the product meets strict safety and performance guidelines. This helps satisfy engineering specifications and regulatory requirements for critical storage facilities.

High‑efficiency foam delivery

The integrated foam maker and deflector ensure fully aspirated foam with controlled discharge—key attributes for rapid suppression in the rim seal zone.

Durable industrial materials

Carbon steel or stainless steel construction, combined with protective finishing, supports long service life in harsh conditions, from desert heat to marine humidity.

Easy integration with existing systems

Designed to work within typical foam proportioning and piping networks. Modular and project‑specific configurations allow operators to adapt to existing tank layouts.

Optimized for emergency response

Rapid, uniform foam spread improves containment speed, reduces thermal stress on tank structures, and minimizes the likelihood of re‑ignition or flare‑ups.

Durability & lifespan

With attentive maintenance and proper material selection for the site environment, the Rim Seal Foam Pourer can provide long, dependable service—often exceeding a decade or more. Corrosion‑resistant finishes, stainless steel options, and regular inspection cycles keep the unit functioning effectively despite exposure to weather, industrial pollutants, or salt air.

Routine cleaning and testing are cost‑effective measures that preserve foam quality and ensure coverage remains uniform, maximizing the Pourer’s protective value throughout its operational lifespan.

1. What exactly does a Rim Seal Foam Pourer protect, and why is that area so critical?

A Rim Seal Foam Pourer protects the rim seal area of external floating roof tanks—the narrow region where the floating roof contacts the tank shell. Vapors can accumulate here and ignite from sources like lightning, mechanical friction, seal failure, or external fires. The Pourer delivers expanded foam directly into this zone, forming a barrier that suppresses vapors, cools surfaces, and prevents oxygen from feeding the fire. Because the rim seal is one of the most fire‑prone areas on a floating roof tank, targeted foam application here is essential for safe, effective containment.

2. How do the foam maker and deflector work together in this device?

The foam maker aerates the foam solution, turning it into stable expanded foam. The resulting foam is then channeled through the Pourer housing toward the deflector and windshield. The deflector guides foam downward into the rim seal area at a controlled, low velocity. This combination ensures foam is applied gently—without splashing or agitating the burning liquid—while still spreading evenly around the tank circumference. The system thus balances effective foam formation with precise, safe delivery to the critical zone.

3. Are there specific foam concentrates that should be used with the Pourer?

EMACO Rim Seal Foam Pourers are compatible with AFFF, AR‑AFFF, and other synthetic foam concentrates, including fluorine‑free options. The choice depends on the stored liquid, regional standards, environmental considerations, and facility requirements. The device is engineered to maintain effective foam expansion across these foam types, allowing operators flexibility in selecting a concentrate that aligns with their hazard profile, regulatory environment, and sustainability goals.

4. How important is uniform foam distribution along the rim seal?

Uniform distribution is crucial because fires can start or spread anywhere along the rim seal circumference. If the foam is uneven, some sections may remain exposed to vapor release and ignition. A continuous blanket prevents localized flare‑ups, ensures consistent cooling, and reduces the chance of re‑ignition. The deflector and housing design in the Pourer specifically focus on producing even coverage, which significantly improves the overall effectiveness of tank protection systems.

5. What kind of maintenance is needed to ensure long‑term reliability?

Maintenance involves routine inspection of the housing, foam maker, and deflector for corrosion, blockage, or damage. Cleaning aeration inlets in the foam maker preserves expansion quality; checking the deflector for deformation helps maintain even coverage. Protective coatings may need reapplication in corrosive environments, and stainless steel options can reduce maintenance frequency. Periodic foam discharge tests validate system responsiveness and coverage, revealing any issues before an actual emergency arises. These steps are straightforward but essential for preserving long‑term reliability and protection.
